NB Handy maintains a breadth of metal inventory ready to service your HVAC fabrication needs. With over 80 standard stocked sizes of sheet and more than 20 varying widths of coils and slit coil, we can deliver galvanized, galvanneal, stainless and aluminum flat rolled products next day in most markets. Our state of the art cut to length processing line ensures the highest of quality standards for standard stocked and special cut to length flat sheets.

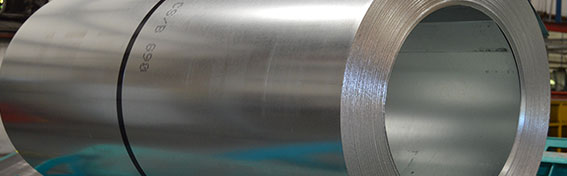

Galvanized Learn More

G60 and G90 galvanized are domestically produced and meet the following ASTM specifications:

ASTM A-653
General requirements of zinc coated (galvanized) commercial quality carbon steel sheets (14–10 ga) Previously ASTM A-526
ASTM A-653
General requirements of zinc coated (galvanized) lockforming quality carbon steel sheets(30–16 ga) Previously ASTM A-527

Sizes

  • 26–14 ga, 60" 10,000# coils
  • 26 and 24 ga, G60 60" 10,000# coils
  • 28 and 26 ga, G30/G40 36" 10,000# coils
  • 28-24 ga, G30/G40 48" 10,000# coils
  • 26–22 ga, G60 48" 10,000# coils
  • 26–14 ga, G90 48" 10,000# coils

Galvannealed Learn More

Galvannealed steel requested as paintgrip sheet is produced with an A-60 coating which meets ASTM A653/653m specs. This 100% iron-zinc alloy coating can easily be painted after normal cleaning.

Sizes

  • 26–18 ga, 60" 10,000# coils
  • 24-22 ga 48” 10,000# coils

Aluminum Learn More

Specifications:

  • ASTM B209 Standard Specification of Aluminum Alloy, Sheet, and Plate
  • References ANSI Standard H-35.2 Dimensional Tolerances for Aluminum
  • 3003-H14

Sizes:

  • 032–.125 (48 x 120 sheet)
  • 032–.040 (48 x 96 sheet)

StainlessLearn More

All Type 304-2B stainless meets the following specification: ASTM A240/240M covering austenitic alloy sheets

Sheet Sizes

  • 26–16 ga, 48 x 120 sheet
  • 26 and 24 ga, 48 x 96 sheet
