Sentriclad

Sentriclad finish is a premium coil coating that is baked on and specifically designed to meet the functional and aesthetic requirements of many architectural, industrial and commercial construction applications.

  • Sentriclad finish coating is a 70% Kynar 500® / Hylar 5000® paint finish that is applied to Galvalume (AZ50) steel and 3000 series aluminum on a continuous, reverse roll-coat paint
  • Primary gauges include 24ga Galvalume and .032", .040", .050" and.063" aluminum
  • Sentriclad's clean metal lines accent architectural detail from contemporary to classic to rustic
  • The Sentriclad finish carries a 30-year limited warranty

Galvalume Sheet & Coil Learn More

  • GALVALUME Plus is a bare, GALVALUME sheet product with a thin, clear acrylic coating.
  • Resists fingerprints and smudging during handling and installations at the jobsite.
  • Specifications: ASTM A792-02.
  • GALVALUME sheet has clearly demonstrated its outstanding performance on these applications for over 20 years.

Galvaneal Sheet & Coil Learn More

  • Galvannealed steel requested as paintgrip sheet is produced with an A-60 coating which meets ASTM A653/653m specs.
  • This 100% iron-zinc alloy coating can easily be painted after normal cleaning.
  • Sheet and coil available in several standard stocked sizes.

Aluminum Sheet & Coil Learn More


  • ASTM B209 Standard Specification of Aluminum Alloy, Sheet, and Plate.
  • References ANSI Standard H-35.2 Dimensional Tolerances for Aluminum.
  • 48” wide material stocked standard – 3003 H14.
  • ASTM B209 Standard Specification of Aluminum Alloy, Sheet, and Plate.
  • References ANSI Standard H-35.2 Dimensional Tolerances for Aluminum.

Stainless Sheet Learn More

  • 48” wide material stocked standard.
  • Type 304-2B stainless meets the following specification: ASTM A240/240M covering austenitic alloy sheets.
  • Type 304 (18-8 Low Carbon) recommended for welding construction where severe corrosive conditions are encountered.

Copper Cold Roll Sheet & Coil Learn More

  • Used in general building applications such as standing seams, batten seams, flat seam roofs, flashings, soffits, fascias, mansards, copings, skylights, wall panels, bay windows, awnings, downspouts, and gutters.
  • 16 and 20 oz standard stocked items.
  • Freedom Grey 16 & 20 oz also available.

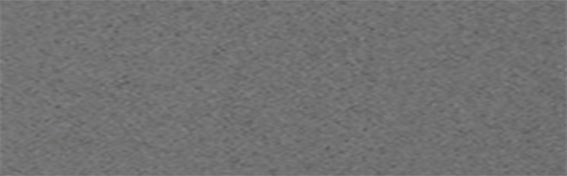

Roofinox TCS Learn More

  • Tin -Plated (Terne) 439/316 stainless steel.
  • Material is softer and easier to seam, has a long product life, and is resistant to algae, plant roots, and air-borne pollutants.
  • Product ideal for all roof types, acquires patina and has an elegant grey surface.
  • Standard sheet and coil sizes in stock.

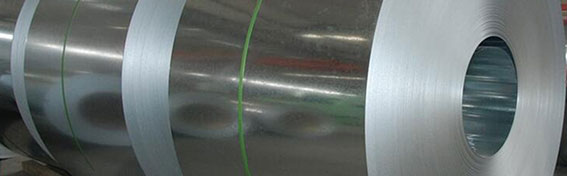

Galvanized Coil and Sheet Learn More

Galvanized Coil 36", 48", 60"

G60 and G90 galvanized are domestically produced and meet the following ASTM specifications:

  • ASTM A-653 – General requirements for delivery of zinc coated (galvanized) commercial quality carbon steel sheets (14–10 ga) Previously ASTM A-526
  • ASTM A-653 – General requirements for delivery of zinc coated (galvanized) lockforming quality carbon steel sheets(30–16 ga) Previously ASTM A-527
Sizes
  • 26–16 ga, 60" G90 10,000# coils
  • 26 and 24 ga, G60 60" 10,000# coils
  • 26–22 ga, G60 48" 10,000# coils
  • 26–14 ga, G90 48" 10,000# coils

Galvanized Sheets

G60 and G90 galvanized are domestically produced and meet the following ASTM specifications:

  • ASTM A-653 – General requirements for delivery of zinc coated (galvanized) commercial quality carbon steel sheets (14–10 ga) Previously ASTM A-526
  • ASTM A-653 – General requirements for delivery of zinc coated (galvanized) lockforming quality carbon steel sheets (30–16 ga) Previously ASTM A-527
  • All sheets come in standard sizes and can be cut to length
Thickness
  • G60 coating: 26–22 ga 8 & 10 foot lengths
  • G90 coating: 26–16 ga 8 & 10 foot lengths
